RB-0050
The free-standing slide RB-0050, with a 1.8 m high platform placed on a structure. The construction is made of robinia wood. The slide is made of a combination of stainless steel sheet and stainless steel tubes, the slide platform is made of robinia wood with a minimum thickness of 25 mm. The ladder rungs and the cross brace are also made of stainless steel. Robinia wood is of high quality and resistant to all weather conditions. All other metal parts are protected by hot-dip galvanizing.
There are no cracks or sharp edges on the device that could pose a risk of injury while playing. The screws used correspond to at least quality class 8.8 and are protected by plastic caps.
Depending on the shape of the raw material, there may be differences in the shape of the black locust trunks between the model image and the finished product.
The device is intended for public use.

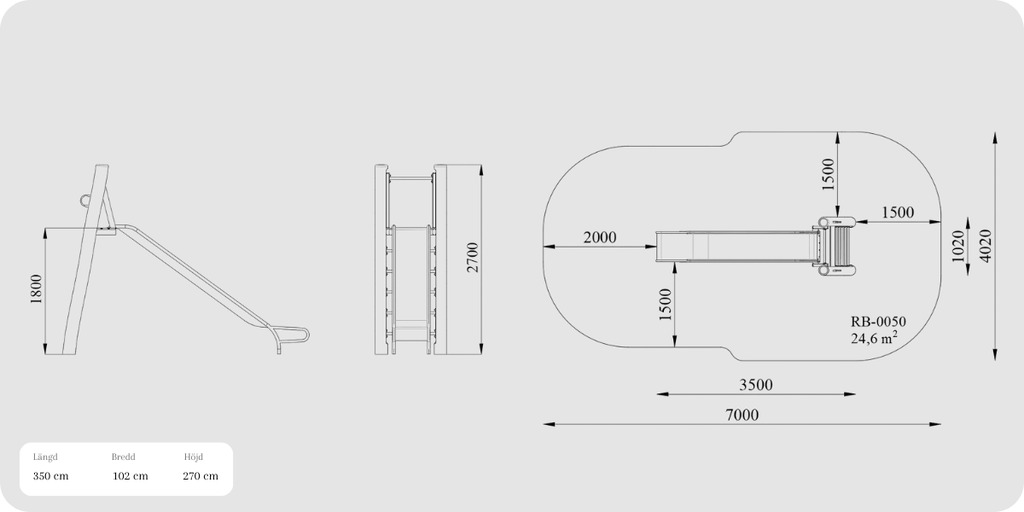

Dimensions (L x W x H): 3.5 m x 1.02 m x 2.7 m
Specs
| Base Material: Robinia |
| Length: 3.5 m |
| Width: 1.02 m |
| Height: 2.7 m |
| Critical Fall Height: 1.8 m |
| Fall Protection: necessary |
| Age: 3+ |
| Safety zone: 24.6 sqm |
| Slide Material: Stainless Steel |
| According to the standard: EN 1176 |
