RB-0040

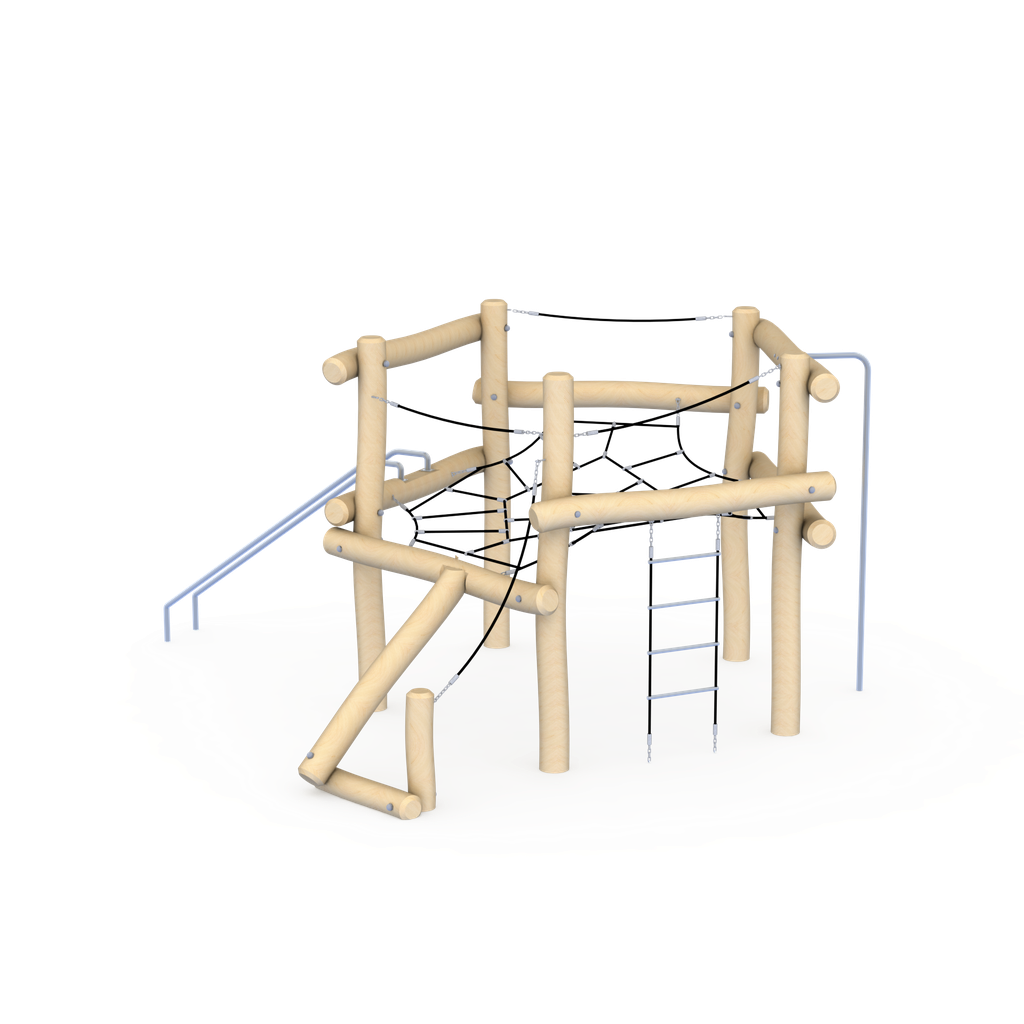

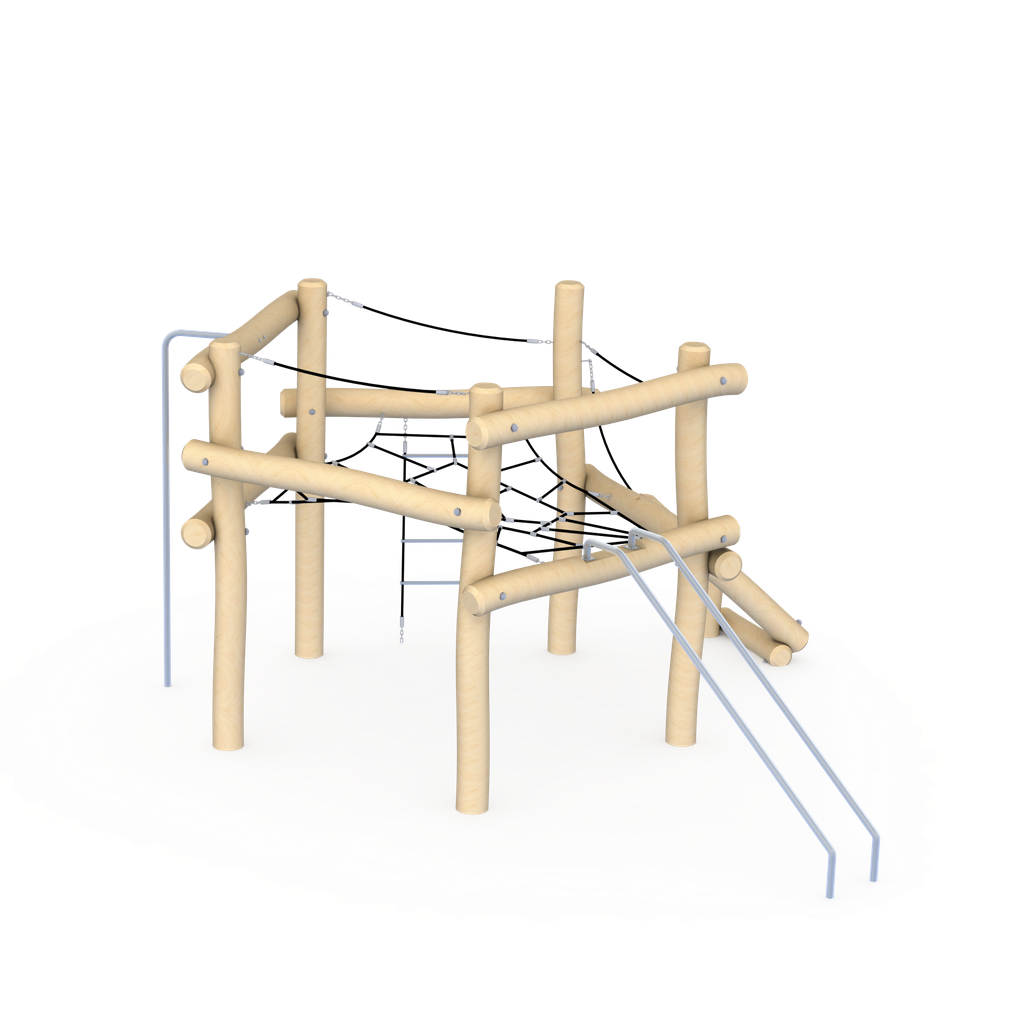

The climbing frame RB-0040 is a pentagonal play equipment made of robinia wood. It consists of: double slide bar, slanted climbing beam, climbing ladder, climbing pole and climbing holds placed on the beam. A vertical pentagonal network of ropes for walking is attached to the top, with the fact that some parts are connected to the beams at a height of 1.2 m and others at a height of 1.5 m. The double slide bar and the climbing bar are made of a metal profile tube made of stainless steel. The climbing ladder consists of ropes and handles made of polypropylene. The rope is made of polypropylene with a steel core with a diameter of 16 mm, connected by metal and polypropylene connectors and stainless steel chains.
There are no cracks or sharp edges on the device that could pose a risk of injury while playing. The screws used correspond to at least quality class 8.8 and are protected by plastic caps.
Depending on the shape of the raw material, there may be differences in the shape of the black locust trunks between the model image and the finished product.
The device is intended for public use.

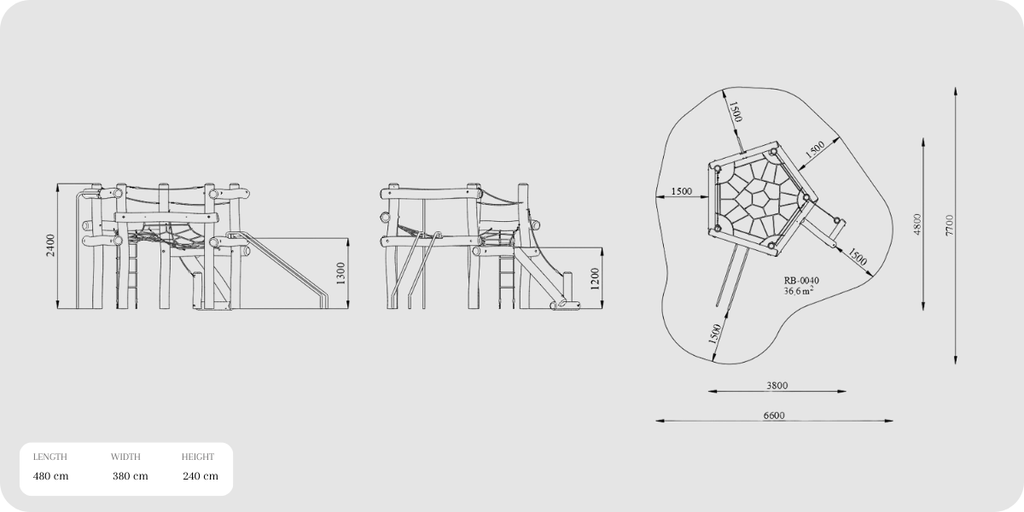

Dimensions (L x W x H): 4.8 m x 3.8 m x 2.4 m
Specs
| Base Material: Robinia |
| Length: 4.8 m |
| Width: 3.8 m |
| Height: 2.4 m |
| Critical Fall Height: 2.4 m |
| Fall Protection: necessary |
| Age: 3-12 |
| Safety zone: 37 sqm |
| According to the standard: EN 1176 |
